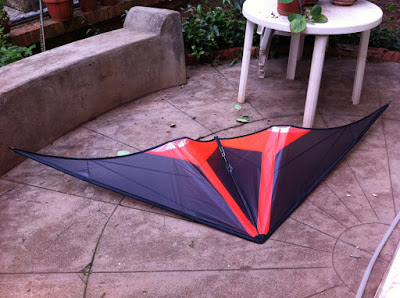

Invictus plan

Invictus plan

Files

Invictus plan file (PDF)

Colorizer

Click on this link to open the colorizers page by Katzengrafik.

Frame

Upper Leading Edge: 68cm Skyshark P200
Lower Leading Edge: 82cm Skyshark P300
Spine: 84cm Skyshark P300 (including split nock)
Upper Spreader: 59,3cm 6mm structil
Lower Spreader: 81cm Skyshark Black Diamond Nitro
Stand Off: 26cm 3mm
Tail Weight: 14g

Bridle

Upper: 54cm
Lower: 54cm
Inner: 65cm
Turbo: 3,5cm

Connectors/positions

Upper spreader: Tiny APA (37,5 cm from nose to bottom of APA)
Lower spreader: APA (101 cm from nose to bottom of APA)
Sailgrabber stand off: Jaco
Stand off: Kitehouse
Splitnocks: FSD
Center Cross: Kitehouse (56cm from nose to center of cross)

Measuring points

Materials

Leading Edge: Dacron 5cm
Trailing Edge: Spinnaker + dacron
Sail: Icarex
Reinforcement: Mylar + dacron
Nose: Cordura or Bisonyl

Details
