70Eight plans

70Eight plans

This is the 190 cm wide version of the 90Three. Very quick and radical and requires quick reflexes. Fun on short lines as well.

Colors

Please use the the colors/panel layout like the builds below. So white, light grey, dark grey and a accent color as pictured in the colorizer. The SUL has white wingtips, the STD has light grey wingtips and the VTD has black wingtips.



Specs

Height: 76 cm
Width: 190 cm
Weight: 185 gr (incl. 12,5 gr tailweight)
Recommended lines: 25 kg

Frame

ULE: 3pt 57,5 cm
LLE: 3pt 62,5 cm
LS: Avia Skinny SUL 56,8 cm
US: 4 mm 37,4 cm
Spine: p100 70,5 cm + splitnock
SO: 3mm spiral wound glassfiber 21,1cm (incl. sailgrabber)

Positions

(from nose sewing to bottom of connector)
US TAPA.: 24,5 cm
Yoyo stopper: 45 cm
LS TAPA: 74 cm
Cross R-sky: 44 cm
Inner bridle point on spine: 45,5 cm

Bridle

Upper: 47 cm (above upper APA)
Outer: 42 cm (below lower APA)
Inner: 50,5 cm (below cross, see position above)
Keeper line: from upper to inner leg (loose in flight)

Details

Seams: Since the plans are scaled down the seam allowance is a bit smaller. Make sure you use a narrower setting on the sewing machine.
Sail:
 Icarex PC31
LE tunnel:
5 cm dacron
TE seam: 2,5 cm ripstop
TE reinforcement: 2,5 cm dacron strip/Mylar (See blueprint for position)
Nose: Kitehouse style Bisonyl. Cut off point on back of nose to create the spine tunnel opening.
Leechline: None
Tailweight: 12,5 gr

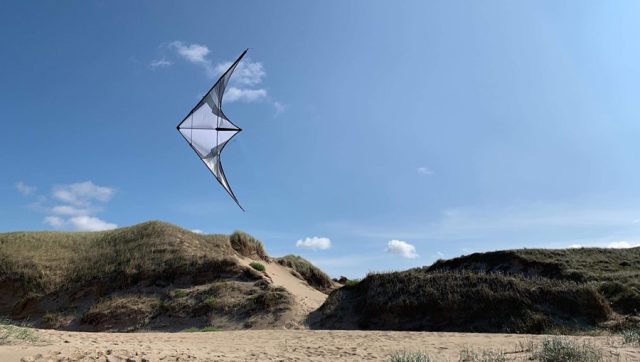

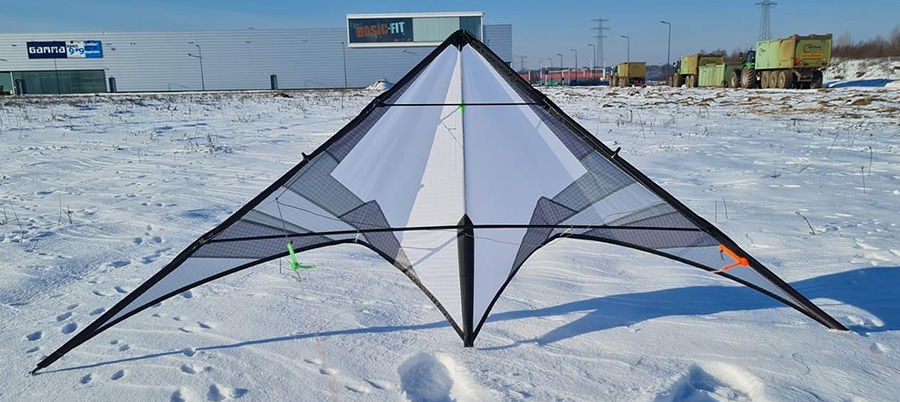

Pictures

Click images for larger version

Files

70Eight_Blueprint_A0_v1

70Eight_Panels_A0_v1

Colorizer

Click the picture or this link to open the colorizer in a new window.

Video
