90Nine Plans

90Nine Plans

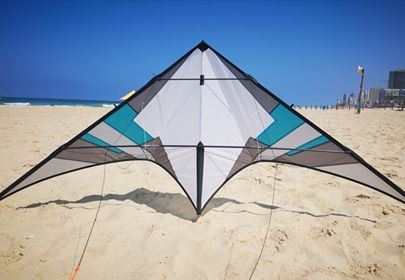

This is the 234cm wingspan version of the 90Three. Mine is framed in Skyshark Nitro and Skyshark Nitro Strong. The stiff frame works very well in this kite. It’s very good at combining and linking tricks. Flatspin tricks like taz-machines can be executed from a lot of different positions. The larger size makes tricks more articulate and easier to read so it might be better suited for trick/freestyle competition. The 90Nine SUL is slow and floaty but retains it’s capabilities in the tricks department.



Colors

Please use the the colors/panel layout like the builds below. So white, light grey, dark grey and a accent color as pictured in the colorizer. The SUL has white wingtips, the STD has light grey wingtips and the VTD has black wingtips.

Colorizer

Click the picture or this link to open the colorizer in a new window.

Plan files

90Nine_Blueprint_A0_v1

90Nine_Panels_A0_v1

Standard

Specs

Height: 93 cm
Width: 234 cm
Recommended lines: 25 – 50 kg

Frame

ULE: Skyshark Black Diamond Nitro 71,5 cm
LLE: Skyshark Black Diamond Nitro Strong 77 cm
LS: Skyshark Black Diamond Nitro 71,5 cm
US: 6 mm 47,2 cm
Spine: Skyshark 5pt 85 cm + splitnock (total +/- 87,5 cm)
SO: 3mm carbon black 26,5 cm (rod to sail)
Tailweight: 17 – 20 grams at base of spine

Positions

(from nose sewing to bottom of connector)
US APA: 30,7 cm
Yoyo stopper: 55,6 cm
LS APA: 91,2 cm
Center Cross Skyshark: 54,6 cm
Inner bridle point on spine: 56,7 cm
SO APA: 29,7 cm (thick end rod to middle APA)
SO Jaco: middle of (light grey) stripe panel along the top of TE seam. 6,4 cm from dark grey panel (see blueprint). Added more holes for testing.

Bridle

Upper: 58,5 cm (above upper APA)
Outer: 52,5 cm (below lower APA)
Inner: 66,3 cm (below cross, see position above)
Keeper line: from upper to inner leg (loose in flight)

Alternative Framing (Lars STD)

ULE: Skyshark 3pt 66 cm
LLE: Skyshark p2x 82,5 cm
LS: Skyshark Black Diamond Nitro 71,5 cm
US: 6 mm 47,2 cm
Spine: Skyshark 5pt 85 cm + splitnock (total +/- 87,5 cm)
SO: 3mm carbon black 26,5 cm (rod to sail)
Tailweight: 25 grams

Super ultralight

Frame

ULE: Skyshark P90 64,5 cm
LLE: Skyshark P100 82 cm
LS: Skyshark 3pt 71,5 cm
US: 4,5 mm 47,2 cm
Spine: Skyshark P100 85 cm + splitnock (total +/- 87,5 cm)
SO: 3mm carbon black 26,5 cm (rod to sail)
Tailweight: 16 grams

Bridle

Upper: 56 cm (above upper APA)
Outer: 50,5 cm (below lower APA)
Inner: 63 cm (below cross, see position above)
Keeper line: from upper to inner leg (loose in flight)
