Specs
Height: ca. 93 cm
Width: ca. 218 cm
Details for Break Standard (STD)
Spine: Aurel Agil 400 or Skyshark P200, 790 mm + FSD-Nock with brass weight

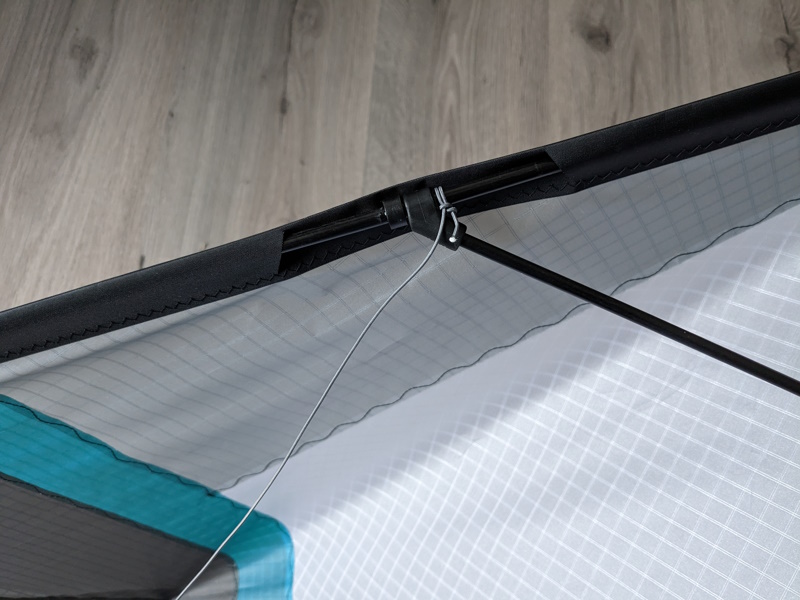

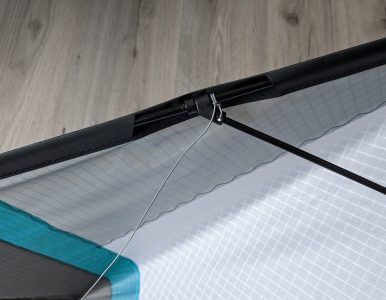

Upper Spreader: 5 mm Carbon, 460 mm
Lower Spreader: Skyshark 5PT, 650 mm
Leading Edge: Exel oder DPP 6mm, 1400 mm
Standoffs: 3 mm CFK, 255 mm (distance between spreader and sail)
Tailweight: Brass rod, 6 mm diameter, Length 50 mm, ca. 12,5 gr
Bridle: inner 585 mm, upper 520 mm, outer 485 mm
Details for Break Low Wind (LW)
Spine: Aurel Agil 600 or Skyshark P100, 790 mm + FSD-Nock with brass weight
Upper Spreader: 4 mm Carbon, 460 mm
Lower Spreader: Skyshark 3PT, 650 mm
Leading Edge: Exel oder DPP 5mm, 1400 mm
Standoffs: 3 mm CFK, 255 mm (distance between spreader and sail)
Tailweight: Brass rod, 6 mm diameter, Length 50 mm, ca. 12,5 gr
Bridle: inner 585 mm, upper 520 mm, outer 485 mm
Details for Break Stephan K. version (XP)
Spine: Penthalon Bandit 400, 790 mm + FSD-Nock with brass weight
Upper Spreader: 5 mm Carbon, 460 mm
Lower Spreader: Skyshark 5PT, 650 mm
Leading Edge: Upper Penthalon Bandit 500 (7,0 gpi) 760 mm, lower Skylon Maverick 6.2 500 (7,7 gpi) 640 mm
Standoffs: 3 mm CFK, 255 mm (distance between spreader and sail)
Tailweight: Brass rod, 6 mm diameter, Length 50 mm, ca. 12,5 gr
Bridle: inner 555 mm, upper 490 mm, outer 465 mm
Pictures
Documents
Plans, templates and more info.
