Specs
Height: ca. 100 cm
Width: ca. 235 cm
Details for Escape Standard (STD)
Spine: Aurel Agil 400, 850 mm + FSD-Nock with Brass weight
Upper Spreader: 5 mm Carbon, 495 mm
Lower Spreader: Skyshark Black Diamond Nitro, 700 mm
Leading Edge: Aurel Agil 400, 1500 mm
Standoffs: 3 mm GFK, 275 mm (measure between sail and LS))
Tailweight: Brass rod, 6 mm, lenght 60 mm, ca. 15 gr
Bridle: inner 640 mm, upper 530 mm, outer 480 mm
Details for Escape Low Wind (LW)
Spine: Aurel Agil 600, 850 mm + FSD-Nock with Brass weight
Upper Spreader: 5 mm Carbon, 495 mm
Lower Spreader: Skyshark Black Diamond Nitro Lite, 700 mm
Leading Edge: Aurel Agil 600, 1500 mm
Standoffs: 3 mm GFK, 275 mm (measure between sail and LS))
Tailweight: Brass rod, 6 mm, lenght 60 mm, ca. 15 gr
Bridle: inner 640 mm, upper 530 mm, outer 480 mm
Pictures
Colorizer
Click image for colorizer

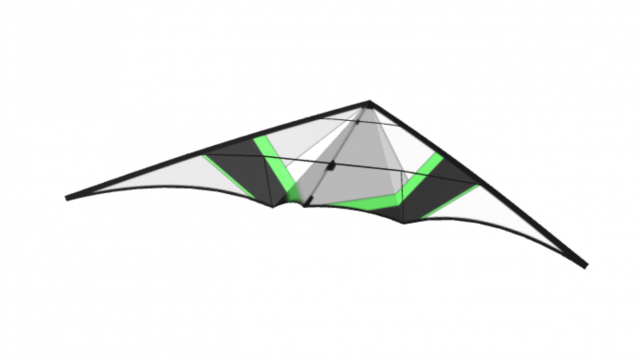

3d view
Click image for 3d view
Documents
Plans, templates and more info.
- Escape-2020-Colors.svg
- Escape-2020-Laser.pdf
- Escape-2020-Panels-80×100.pdf
- Escape-2020-Parameter.pdf
- Escape-2020-Plan.pdf
- Ulzburger Kites GitHub page
Variations
